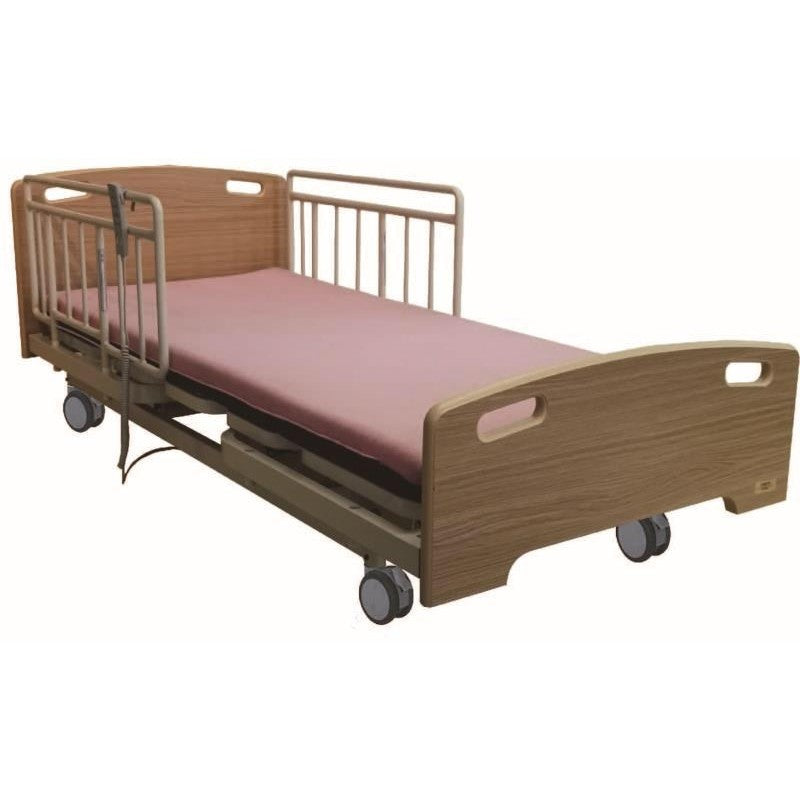

Description
- Maximum load capacity is 170kg
- The bed rails and bed frame are made of steel (the outer layer is made of epoxy resin powder); the cover plate is made of polypropylene resin
- 3 bedside styles:
Plug-in type - manual insertion and extraction, up to two can be installed on each side Folding type - can be easily lifted or lowered by pressing (additional purchase required)
Power-assisted armrests - a pair of plug-in type, occupying about half of the bed (additional purchase required) - Equipped with holes for intravenous infusion
- All four casters are equipped with wheel locking systems
- Supports 4-section metal mesh mattress
- Suitable for hospital, residential or home use
- Provides various lifting functions (the backboard, footboard and bed frame can be raised and lowered)
- The bed can be extended using the adjusting rod
- The bed frame can be adjusted arbitrarily (can support five fixed positions)
- Quick start-up of equipment and control systems
- Passed safety certification
- easy to clean
size:
- Net weight: 72kg (bed only)
- Dimensions: 2110mm (length) × 960mm (width) × 200-610mm (height)
- Bed deck dimensions: 2030mm (length) x 850mm (width)
- Back tilt: 0-73°
- Knee tilt: 0-24° (±5°)
- Height adjustment: 200mm - 610mm
- Trendelenburg and reverse Trendelenburg: 0-10° (±2°)
- Safe working load of 170kg
- Heavy duty rectangular steel frame (epoxy coating)
- Dorp down cot sides (optional)
- 2 section IV pole (with 2 position fitting optional)
- 4 braked castors
- 4 section metal mesh mattress support
- Suitable for residential or domestic use
- Lifting pole fitting (2 positions)
- Extension bar available
- 5 position mattress support
- Quick release motors and control system
- Fully certified
- Easy cleaning
- Transport brackets included
- Mattress retainers included (5 in all)
- Emergency Lowering of backrest to CPR position
Dimension
- Net Weight: 72kg (bed only)
- Dimensions: 2110 mm (L) x 985mm (W) x 200-610mm (H)
- Bed Deck Size: 1956 mm (L) x 850 mm (W)
- Packaged Size: 960 mm (L) x 440 mm (W) x 1230 mm, (H) (without side rails)
- Back Rest Tilting :0-74°
- Knee Rest Tilting: 0-24°(±5°)
- Height Adjustment: 200 mm - 610 mm
- Trendelenburg & Reverse Trendelenburg : 0-10°(±2°)
